TCP：服务器和客户端的示例

• 创建标准项目并选择 CODESYS Control Win V3 作为设备。

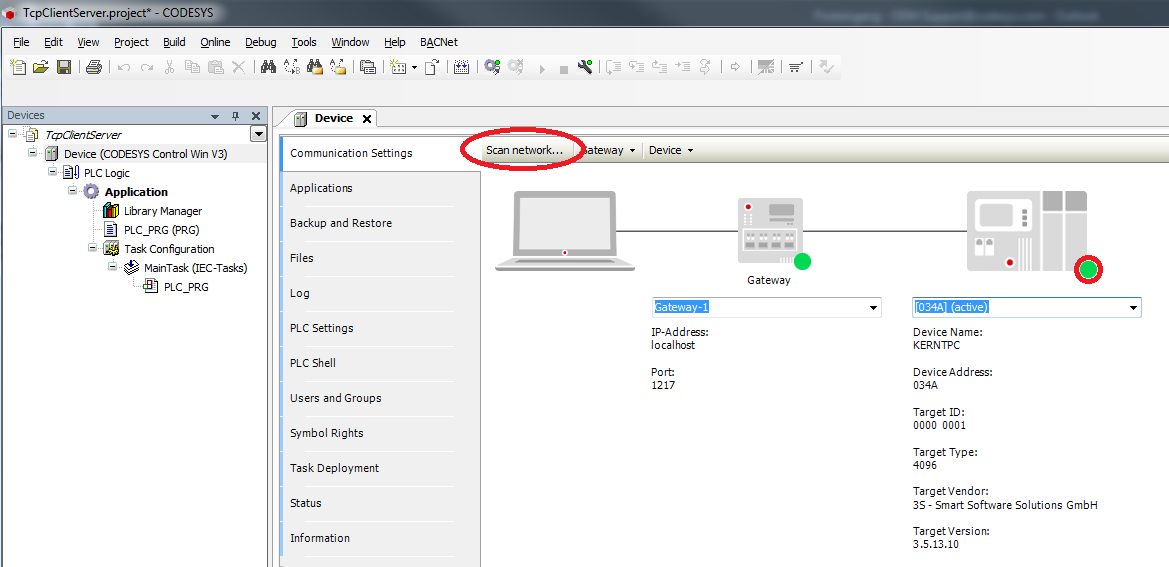

• 通过网络扫描连接目标系统。

从 SP16 开始：

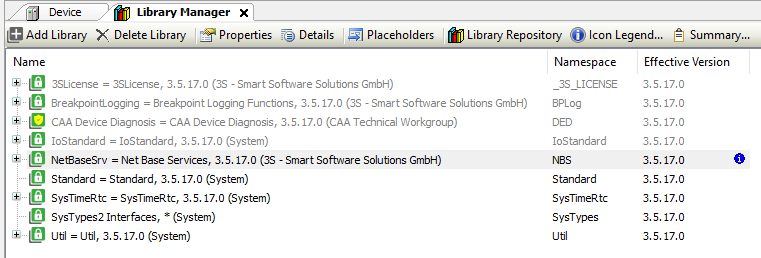

• 打开库管理器并添加以下库： Net Base Services SysTypes2 interface s SysTimeRtc Util

• 创建一个名为 gvlSetting 的全局变量列表 ，并定义以下变量：

---

声明

VAR_GLOBAL CONSTANT
    gc_wMaxTelegram : INT := 15;
    gc_uiPort       : UINT := 50001;
END_VAR
VAR_GLOBAL
    gc_stIpAddr     : String(19) := '192.168.99.109';
END_VAR

---

使 IP 地址和端口与系统对应。

• 创建一个名为 TcpServer 的新 POU ，并按如下进行修改：

---

声明

VAR CONSTANT
    c_wMaxTelegram  : INT := 15;
END_VAR
VAR
    ipAddress       : NBS.IPv4Address;
    fbTcpConnection : NBS.TCP_Connection;
    fbTcpServer     : NBS.TCP_Server;
    fbTcpRead       : NBS.TCP_Read;
    fbTcpWrite      : NBS.TCP_Write;


    abyRx           : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;
    abyTx           : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;

    iIndex          : INT;
    xRead           : BOOL := TRUE;
    xWrite          : BOOL := TRUE;
    xAckTelegram    : BOOL;
    xBlockAck       : BOOL;
    udiRead         : DINT;
END_VAR

---

实现

IF fbTcpRead.xReady THEN
    IF (fbTcpRead.udiCount = (gvlSetting.gc_wMaxTelegram + 1)) THEN
        IF ((abyRx[0] = 87) AND  (abyRx[1] = 68) AND (abyRx[2] = 58) AND (abyRx[3] = 32)) THEN // 'WD: ' = Watchdog-Telegram
            FOR iIndex := 0 TO c_wMaxTelegram DO
                abyTx[iIndex] := 0;
            END_FOR
            // 'ACK: ' = Acknowledge-Telegram
            abyTx[0] := 65;
            abyTx[1] := 67;
            abyTx[2] := 75;
            abyTx[3] := 58;
            abyTx[4] := 32;
            // Receive-Counter
            abyTx[5] := abyRx[4];
            abyTx[6] := abyRx[5];
            abyTx[7] := abyRx[6];
            abyTx[8] := abyRx[7];
            xWrite := TRUE;
        END_IF
        xWrite := TRUE;
    END_IF
ELSIF fbTcpRead.xError THEN
    xRead := FALSE;
END_IF


fbTcpWrite(xExecute := xWrite AND NOT xBlockAck, itfConnection := fbTcpConnection, udiSize := SIZEOF(abyTx), pData := ADR(abyTx),  udiTimeOut := 0);
IF fbTcpWrite.xDone OR fbTcpWrite.xError THEN
    xWrite := FALSE;
END_IF

---

• 创建一个名为 TcpClient 的新 POU ，并按如下进行修改：

---

声明

VAR CONSTANT
    c_tInterval     : TIME := T#1S;
    c_udiInterval   : UDINT := 3 * TIME_TO_UDINT(c_tInterval)/1000;
END_VAR
VAR
    ipAddress       : NBS.IPv4Address;
    fbTcpClient     : NBS.TCP_Client;
    fbTcpRead       : NBS.TCP_Read;
    fbTcpWrite      : NBS.TCP_Write;

    abyTx           : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;
    abyRx           : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;

    fbBlink         : BLINK := (TIMELOW := c_tInterval, TIMEHIGH := c_tInterval);
    xBlink          : BOOL; // Memory of the last state of PLC_PRG.fbBlink

    udiVal          : UDINT;
    pudiVal         : POINTER TO BYTE;
    iIndex          : INT;
    xConnect        : BOOL;

    xRead           : BOOL;
    xMissingAck     : BOOL;
    udiResult       : UDINT;
    udiLastAck      : UDINT;
    udiNow          : UDINT;
    udiRead         : UDINT;
    eRErrorID       : NBS.ERROR;
    eWErrorID       : NBS.ERROR;
END_VAR

---

实现

IF NOT fbTcpClient.xActive THEN
    ipAddress.SetInitialValue(ipAddress := gvlSetting.gc_stIpAddr);
END_IF
fbTcpClient(xEnable := xConnect, itfIPAddress := ipAddress, uiPort := gvlSetting.gc_uiPort, udiTimeOut := 0);

fbBlink(ENABLE := TRUE);
IF (fbBlink.OUT AND (xBlink <> fbBlink.OUT) ) THEN
    udiVal := udiVal + 1;
    FOR iIndex := 0 TO gvlSetting.gc_wMaxTelegram DO
        abyTx[iIndex] := 0;
    END_FOR
    // 'WD: ' = Watchdog-Telegram
    abyTx[0] := 87;
    abyTx[1] := 68;
    abyTx[2] := 58;
    abyTx[3] := 32;
    // Counter
    pudiVal := ADR(udiVal);
    abyTx[4] := pudiVal^;
    pudiVal := pudiVal + 1;
    abyTx[5] := pudiVal^;
    pudiVal := pudiVal + 1;
    abyTx[6] := pudiVal^;
    pudiVal := pudiVal + 1;
    abyTx[7] := pudiVal^;
    fbTcpWrite(xExecute := xConnect,itfConnection := fbTcpClient.itfConnection, udiTimeOut := 0, udiSize := SIZEOF(abyTx), pData := ADR(abyTx));
ELSE
    fbTcpWrite(xExecute := FALSE);
END_IF

xBlink := fbBlink.OUT;

fbTcpRead(xEnable := xRead AND xConnect, itfConnection := fbTcpClient.itfConnection, udiSize := SIZEOF(abyRx), pData := ADR(abyRx), udiCount => udiRead);

IF fbTcpRead.xReady THEN
    IF (fbTcpRead.udiCount = (gvlSetting.gc_wMaxTelegram + 1)) THEN
        IF ((abyRx[0] = 65) AND  (abyRx[1] = 67) AND (abyRx[2] = 75) AND (abyRx[3] = 58) AND (abyRx[4] = 32)) THEN // 'WD: ' = Watchdog-Telegram
            udiLastAck := SysTimeRtc.SysTimeRtcGet(udiResult);
        END_IF
    END_IF
ELSIF fbTcpRead.xError THEN
    fbTcpRead(xEnable := FALSE);
END_IF


IF NOT fbTcpClient.xActive AND NOT fbTcpClient.xBusy AND NOT fbTcpClient.xDone THEN
    xConnect := TRUE;
ELSIF fbTcpClient.xDone THEN
    xConnect := FALSE;
END_IF

udiNow := SysTimeRtc.SysTimeRtcGet(udiResult);

IF (udiNow > (udiLastAck + c_udiInterval)) THEN
    xMissingAck := TRUE;
ELSE
    xMissingAck := FALSE;
END_IF

---

• 修改 PLC_PRG 如下：

---

实现

TcpServer();
TcpClient();

---

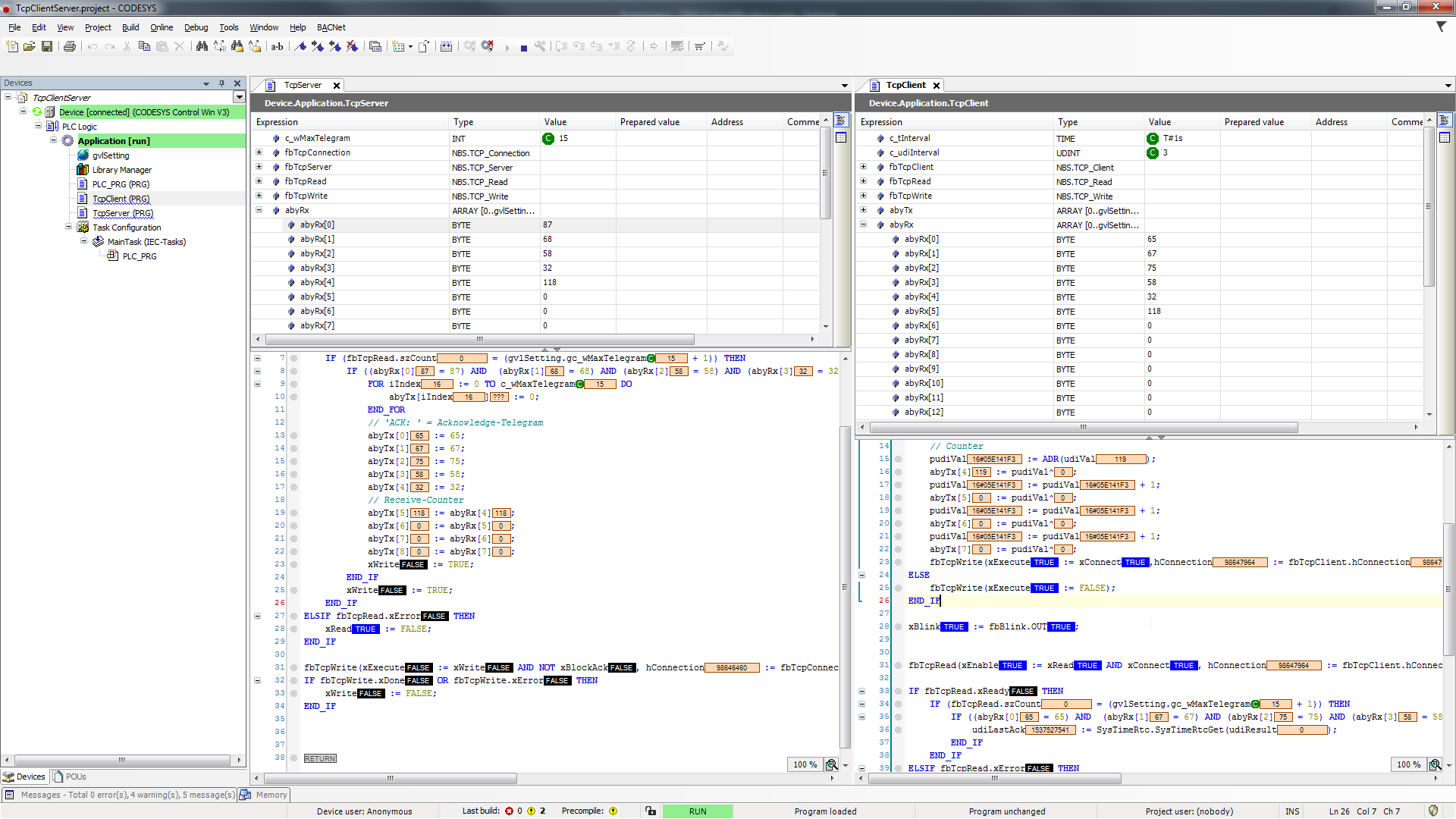

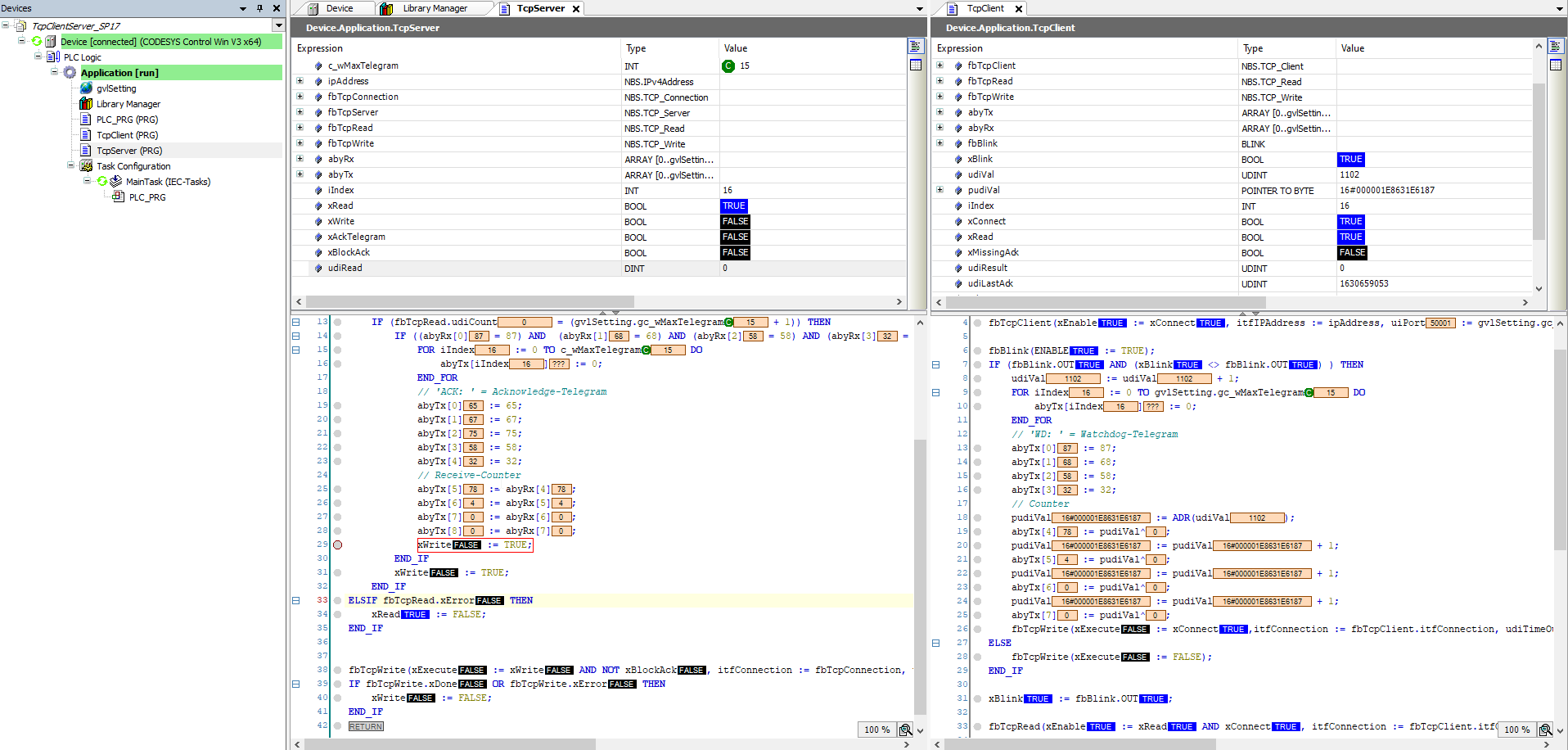

• 将项目加载到控制器并启动它。将变量 TcpClient.xRead 设置为 TRUE。

SP16 之前：

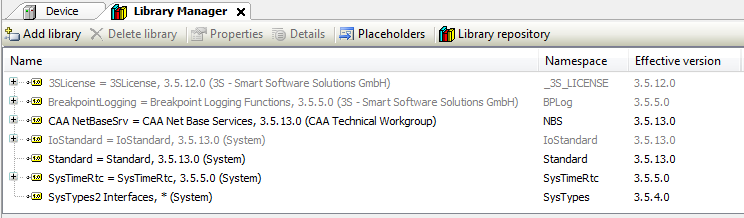

• 打开库管理器并添加以下库： CAA Net Base Services SysTypes2 interface s SysTimeRtc Util

• 创建一个名为 gvlSetting 的全局变量。 修改 gvlSetting 如下：

---

声明

{attribute 'qualified_only'}
VAR_GLOBAL CONSTANT
    gc_uiPort        : UINT := 50001;
    gc_stIpAddr      : NBS.IP_ADDR := (sAddr := '192.168.99.74');

    gc_wMaxTelegram  : INT := 15; // Length o the telegram
END_VAR

---

使 IP 地址和端口与系统对应。

• 创建一个名为 TcpServer 的新 POU ，并按如下进行修改：

---

声明

VAR CONSTANT
    c_wMaxTelegram  : INT := 15;
END_VAR
VAR
    fbTcpConnection : NBS.TCP_Connection;
    fbTcpServer     : NBS.TCP_Server;
    fbTcpRead       : NBS.TCP_Read;
    fbTcpWrite      : NBS.TCP_Write;

    abyRx           : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;
    abyTx           : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;

    iIndex          : INT;
    xRead           : BOOL := TRUE;
    xWrite          : BOOL := TRUE;
    xAckTelegram    : BOOL;
    xBlockAck       : BOOL;
    udiRead         : UDINT;
END_VAR

---

实现

fbTcpServer(xEnable := TRUE, ipAddr := gvlSetting.gc_stIpAddr, uiPort := gvlSetting.gc_uiPort);
fbTcpConnection(xEnable := fbTcpServer.xBusy, hServer := fbTcpServer.hServer);

fbTcpRead(xEnable := fbTcpConnection.xActive, hConnection := fbTcpConnection.hConnection, szSize := SIZEOF(abyRx), pData := ADR(abyRx), szCount => udiRead);

IF fbTcpRead.xReady THEN
    IF (fbTcpRead.szCount = (gvlSetting.gc_wMaxTelegram + 1)) THEN
        IF ((abyRx[0] = 87) AND  (abyRx[1] = 68) AND (abyRx[2] = 58) AND (abyRx[3] = 32)) THEN // 'WD: ' = Watchdog-Telegram
            FOR iIndex := 0 TO c_wMaxTelegram DO
                abyTx[iIndex] := 0;
            END_FOR
            // 'ACK: ' = Acknowledge-Telegram
            abyTx[0] := 65;
            abyTx[1] := 67;
            abyTx[2] := 75;
            abyTx[3] := 58;
            abyTx[4] := 32;
            // Receive-Counter
            abyTx[5] := abyRx[4];
            abyTx[6] := abyRx[5];
            abyTx[7] := abyRx[6];
            abyTx[8] := abyRx[7];
            xWrite := TRUE;
        END_IF
        xWrite := TRUE;
    END_IF
ELSIF fbTcpRead.xError THEN
    xRead := FALSE;
END_IF

fbTcpWrite(xExecute := xWrite AND NOT xBlockAck, hConnection := fbTcpConnection.hConnection, szSize := SIZEOF(abyTx), pData := ADR(abyTx),  udiTimeOut := 0);
IF fbTcpWrite.xDone OR fbTcpWrite.xError THEN
    xWrite := FALSE;
END_IF

---

• 创建一个名为 TcpClient 的新 POU ，并按如下进行修改：

---

声明

VAR CONSTANT
    c_tInterval   : TIME := T#1S;
    c_udiInterval : UDINT := 3 * TIME_TO_UDINT(c_tInterval)/1000;
END_VAR
VAR
    fbTcpClient   : NBS.TCP_Client;
    fbTcpRead     : NBS.TCP_Read;
    fbTcpWrite    : NBS.TCP_Write;

    abyTx         : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;
    abyRx         : ARRAY [0..gvlSetting.gc_wMaxTelegram] OF BYTE;

    fbBlink       : BLINK := (TIMELOW := c_tInterval, TIMEHIGH := c_tInterval);
    xBlink        : BOOL; // Memory of the last state of PLC_PRG.fbBlink

    udiVal        : UDINT;
    pudiVal       : POINTER TO BYTE;
    iIndex        : INT;
    xConnect      : BOOL;

    xRead         : BOOL := TRUE;
    xMissingAck   : BOOL;
    udiResult     : UDINT;
    udiLastAck    : UDINT;
    udiNow        : UDINT;
    udiRead       : UDINT;
END_VAR

---

实现

fbTcpClient(xEnable := xConnect, ipAddr := gvlSetting.gc_stIpAddr, uiPort := gvlSetting.gc_uiPort, udiTimeOut := 0);

fbBlink(ENABLE := TRUE);
IF (fbBlink.OUT AND (xBlink <> fbBlink.OUT) ) THEN
    udiVal := udiVal + 1;
    FOR iIndex := 0 TO gvlSetting.gc_wMaxTelegram DO
        abyTx[iIndex] := 0;
    END_FOR
    // 'WD: ' = Watchdog-Telegram
    abyTx[0] := 87;
    abyTx[1] := 68;
    abyTx[2] := 58;
    abyTx[3] := 32;
    // Counter
    pudiVal := ADR(udiVal);
    abyTx[4] := pudiVal^;
    pudiVal := pudiVal + 1;
    abyTx[5] := pudiVal^;
    pudiVal := pudiVal + 1;
    abyTx[6] := pudiVal^;
    pudiVal := pudiVal + 1;
    abyTx[7] := pudiVal^;
    fbTcpWrite(xExecute := xConnect,hConnection := fbTcpClient.hConnection, udiTimeOut := 0, szSize := SIZEOF(abyTx), pData := ADR(abyTx));
ELSE
    fbTcpWrite(xExecute := FALSE);
END_IF

xBlink := fbBlink.OUT;

fbTcpRead(xEnable := xRead AND xConnect, hConnection := fbTcpClient.hConnection, szSize := SIZEOF(abyRx), pData := ADR(abyRx), szCount => udiRead);

IF fbTcpRead.xReady THEN
    IF (fbTcpRead.szCount = (gvlSetting.gc_wMaxTelegram + 1)) THEN
        IF ((abyRx[0] = 65) AND  (abyRx[1] = 67) AND (abyRx[2] = 75) AND (abyRx[3] = 58) AND (abyRx[4] = 32)) THEN // 'WD: ' = Watchdog-Telegram
            udiLastAck := SysTimeRtc.SysTimeRtcGet(udiResult);
        END_IF
    END_IF
ELSIF fbTcpRead.xError THEN
    fbTcpRead(xEnable := FALSE);
END_IF

IF NOT fbTcpClient.xActive AND NOT fbTcpClient.xBusy AND NOT fbTcpClient.xDone THEN
    xConnect := TRUE;
ELSIF fbTcpClient.xDone THEN
    xConnect := FALSE;
END_IF

udiNow := SysTimeRtc.SysTimeRtcGet(udiResult);

IF (udiNow > (udiLastAck + c_udiInterval)) THEN
    xMissingAck := TRUE;
ELSE
    xMissingAck := FALSE;
END_IF

---

• 修改 PLC_PRG 如下：

---

实现

TcpServer();
TcpClient();

---

• 将项目加载到控制器并启动它。
